Brand: Groz Tools & Equipment

High Volume Grease Ratio Pump

Price on Request

8 products sold in last 3 hours
Selling fast! Over 5 people have in their cart
  • Heavy Duty Industrial grade pneumatic pump designed for unmatched performance in demanding conditions.
25 people are viewing this right now

High Volume Grease Ratio Pump

  • Heavy Duty Industrial grade pneumatic pump designed for unmatched performance in demanding conditions
  • Particularly suitable for grease distribution in pipe works & installations where simultaneous grease supply is required on different dispensing points at high pressure or in large volume
  • Pump dispenses grease upto 50 times the air inlet pressure
  • All metal construction, fully CNC machined with hardened wear resistant moving parts
  • Reciprocating piston operated 3″ (76 mm) dia. air motor
  • Stall free, ice free motor with tough durable housing, integrated muffler for quiet operation
  • No Service Required: With very few moving parts this rugged pump requires virtually no servicing. No special maintenance tools needed

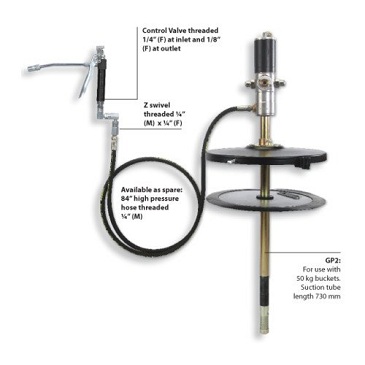

  • Supplied complete with drum cover, rubber line follower plate, 3 m high pressure grease hose, Z swivel & professional grease control valve
  • WETTED COMPONENTS Steel, Polyurethane, Nitrile Rubber, C.R.C. Sheet, Copper, PTFE
  • RECOMMENDED USE NLGI 1, 2, 3 Grease

SPECIFICATIONS

Working Pressure 2-10 BAR (30-150 PSI)
Max. Outlet Pressure 500 BAR (7500PSI)
Air Inlet Connection 1/4″ NPT
Pump Outlet Connection 3/8″
Air Consumption 13 CFM
Grease Output 3.2 Kg per min in free flow
Noise Leve 85-90 dB

ORDERING INFORMATION

CAT NR. FITS DRUM COVER DIAMETER FOLLOW PER PLATE DIMENSIONS BOX QTY.
INCH MM INCH MM INCH MM
GPH/1/ST/BSP 20-30 kg pails 12 310 9-1/2 241 11-11/32 288 1
GPH/2/ST/BSP 50-60 kg pails 15 381 12-11/16 322 15 380 1
GPH/3/ST/BSP 180 kg drums 24-1/2 612 21-5/8 550 23-11/16 602 1
SPARE PARTS & KITS
KIT/RPR/AMT/GPH 1
KIT/RPR/PUMP/GPH 1
