Electric Oil Pumps

Price on Request

20 products sold in last 10 hours

Selling fast! Over 6 people have in their cart

Heavy duty oil pump designed to transfer bulk oils, hydraulic oils, used oil etc Air cooled motor with thermal protection.

22 people are viewing this right now

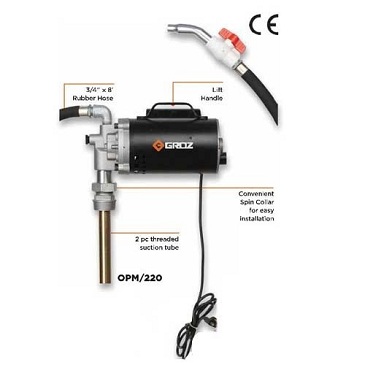

Electric Oil Pumps

Heavy duty oil pump designed to transfer bulk oils, hydraulic oils, used oil etc
Air cooled motor with thermal protection
Non corroding aluminium die cast pump body
Sintered powder metal gears
Self priming, positive displacement design
High horsepower to flow ratio assures adequate power to pump viscous fluids at low temperatures
Pump has an internal bypass valve to bypass flow, if the discharge pressure exceeds the bypass valve setting
Built-in 2″ bung adaptor for mounting on drums/tanks
Can be used to transfer used oil with a screen fitted onto the suction tube
Duty Cycle: 30 minutes ON / 30 minutes OFF

Available in following versions:

AC regular flow
AC high flow
DC regular flow

WETTED COMPONENTS Aluminium, Steel, Cast Iron, Nylon, NBR, Zinc, Polypropylene, PVC

RECOMMENDED USE Oils, Synthetic Oils, Used Oils, Hydraulic Oils, Cutting Oils, Oil Based Herbicides, Non- Flammable Oil Based Solvents, Liquid Soap etc.

	OPM/220	OPM/220/HF	OPM/12
Description	Heavy duty 220V AC	High Flow heavy duty 220V AC	Heavy duty 12V DC
Flow Rate	14 16.6 LPM	Upto 25 LPM	Upto 11.5 LPM
Motor	1/2 HP 220V AC	1/2 HP 220V AC	1/2 HP 12V DC
Amp	6 Amp	6 Amp	39 Amp
Rpm	1440/1720	2800/3360	1440
Mechanism	Gear pump	Gear pump	Gear pump
Suction Pipe	34″ long	34″ long	34″ long
Bung Adaptor	2″ threaded	2″ threaded	2″ threaded
Hose	3/4″ 8′	3/4″ 8′	3/4″ 8′
Inlet	1″ NPT	1″ NPT	1″ NPT
Outlet	3/4″ NPT	3/4″ NPT	3/4″ NPT
Dispensing Nozzle	Ball valve	Ball valve	Ball valve
Power Cable Length	8′	8′	–
Air Cooled	Yes	Yes	Yes
Max. Viscosity Of Oil	SAE 90	SAE 90	SAE 90
Max Working Pressure	65 PSI (4.5 BAR)	65 PSI (4.5 BAR)	65 PSI (4.5 BAR)
Thermal Protection	Yes	Yes	No
