Brand: Groz Tools & Equipment

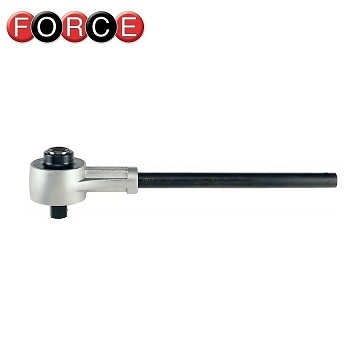

Torque Multipliers

Price on Request

13 products sold in last 13 hours
Selling fast! Over 7 people have in their cart
  • Heavy duty torque multiplier provides mechanical advantage in applying high torque to tighten nuts & bolts.

  • Torque Multipliers

    • Heavy duty torque multiplier provides mechanical advantage in applying high torque to tighten nuts & bolts
    • Particularly used for high torque application
    • Chrome Vanadium construction with Chrome Molybdenum square drive & Chrome Molybdenum reaction bar
    • Planetary gear train mechanism multiplies the input torque as per the multiplication factor to deliver the output torque
    • Torque multiplicative factor reduces operator effort by upto 75%
    • Replaces the use of long levers, which can be potentially dangerous
    • Includes breakaway adaptor to prevent damage to the multiplier in case excess torque is applied
    • Comes complete with straight reaction bar, breakaway adaptor & hex key in a blow moulded case
26 people are viewing this right now

Specification

Description 1:6.5 TORQUE MULTIPLIER 1500 Nm (1100 ft-lb) 1:3.3 TORQUE MULTIPLIER 2500 Nm (1840 ft-lb)
Max. Torque 1500 (1100 ft-lb) 2500 (1840 ft-lb)
Torque ratio 1 : 6.5 1 : 3.3
Gear ratio 1:9 1:4
Max. Input torque 231 Nm (170 ft-lb) 758 Nm (560 ft-lb)
Max. Output torque 1500 Nm (1100 ft-lb) 2500 Nm (1840 ft-lb)
Input drive 1/2″ 3/4″
Output drive 3/4″ 1″
Accuracy 10% 10%

ORDERING INFORMATION

CAT NR. MAX. TORQUE BOX QTY.
(NM) (FT-LB)
TQM/1-2/3-4/15 1500 1100 1
TQM/3-4/0-1/25 2500 1840 1
