Heavy duty gun for controlling fluid deliveries in most demanding applications Aluminium die cast construction.

21 people are viewing this right now

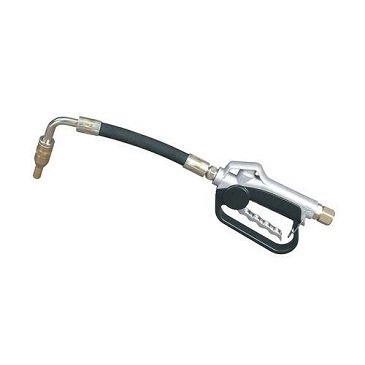

Oil Control Guns

Heavy duty gun for controlling fluid deliveries in most demanding applications
Aluminium die cast construction
Built-in continuous flow switch can be activated for unattended dispensing
Ergonomically designed plastic grip for convenient usage
Swivel at inlet for easy maneuverability. Strainer in the swivel keeps contaminants, dust, grit etc. away from entering the gun
Available with manual or automatic non-drip nozzles
RECOMMENDED USE Oils with viscosity upto SAE 140
DO NOT USE WITH Water based media, Gasoline etc.
WETTED COMPONENTS Aluminum, Steel, Brass & NBR

SPECIFICATIONS

Flow Rate	Upto 30 LPM
Max. Working Pressure	1,000 PSI (70 BAR)
Working Temperature Range	14C to 55C (7F to 131F)
Inlet Threads	1/2″ BSPT (F) / 1/2″ NPT (F)
In-Line Swivel	1/2″ (F)
Outlet Diameter Of Steel Spout	1/2″ (12.7 mm)
Inside Diameter Of Hose Extension	1/2″ (12.7 mm)

ORDERING INFORMATION

CAT NR.	DETAILS	BOX QTY.
OGN/SA/1-2R/B	Oil Control Gun with Steel Extension and Automatic Non Drip Nozzle	1
OGN/SM/1-2R/B	Oil Control Gun with Steel Extension and Manual Non Drip Nozzle	1
