Brand: Groz Tools & Equipment

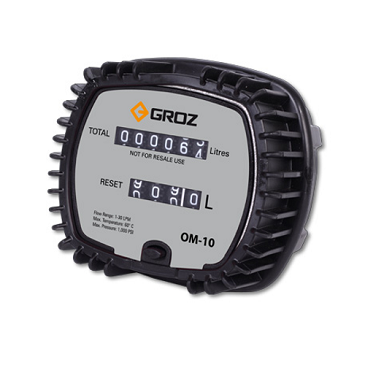

Mechanical Oil Meter

Price on Request

19 products sold in last 10 hours
Selling fast! Over 16 people have in their cart
  • High pressure positive displacement meter suitable for in-line and end of line applications Oval gear mechanism for optimum accuracy 7 digit non-resettable batch totalizer.
30 people are viewing this right now

Mechanical Oil Meter

  • High pressure positive displacement meter suitable for in-line and end of line applications
  • Oval gear mechanism for optimum accuracy 7 digit non-resettable batch totalizer
  • Meter inlet / outlet threaded 1/2″ BSP (F) for use with air / electric / manual pumps
  • High reliability mechanical display
  • Robust aluminum die cast construction with protective shroud on meter
  • WETTED COMPONENTS Aluminum, Acetal, Nitrile Rubber & Steel
  • RECOMMENDED USE Oils upto SAE 140, Diesel, Kerosene & Engine Coolants (RTU)
  • DO NOT USE WITH Water Based Media, Petrol etc.

SPECIFICATIONS

Flow Rate 1-30 LPM
Accuracy 1%
Repeatability 0.30%
Max. Working Pressure 1,000 PSI (70 BAR)
Pressure Loss 10 PSI (0.7 BAR)
Working Temperature Range 10C to 55C
Max. Resettable Batch Totalizer 999.9 litres
Max. Non Resettable Batch Totalizer 999999.9 litres
Least Count /Resolution 0.10 litres
Water Resistance IP55
  • FLOW RATE: 1-30 LPM
  • PRESSURE: UPTO 1,000 PSI (70 BAR)
  • TEMPERATURE: 10C TO 55C

ORDERING INFORMATION

CAT NR. THREADS BOX QTY.
OM-100/1-2/BSP 1/2″ BSP (F) 1
