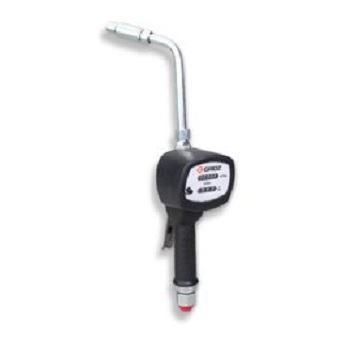

Mechanical Heavy Duty Oil Control Gun

Price on Request

5 products sold in last 13 hours

Selling fast! Over 14 people have in their cart

Heavy duty industrial oil control gun with robust aluminium construction & a rubberised shroud for protecting the meter.

28 people are viewing this right now

Mechanical Heavy Duty Oil Control Gun

Heavy duty industrial oil control gun with robust aluminium construction & a rubberised shroud for protecting the meter
Oval gear mechanism for optimum accuracy
Latching handle with built-in trigger lock for continuous dispensing
Gun has 2 outlet positions: in-line & 90
Built in swivel at inlet
Supplied complete with steel extension with automatic non-drip nozzle
RECOMMENDED USE Engine Oils, Diesel, ATF, Antifreeze, Antiboil & other Petroleum Based Media Upto SAE 140

SPECIFICATIONS

Flow Rate	1 to 30 LPM
Accuracy	1%
Repeatability	0.20%
Max. Working Pressure	1,500 PSI (70 BAR)
Working Temperature Range	0C to 50C
Max. Resettable Batch Totalizer	999.9 litres
Max. Non Resettable Batch Totalizer	9,99,999 litres
Least Count /Resolution	0.10 litres
Inlet Threaded	1/2″ BSPT (F)
Water Resistance	IP55
