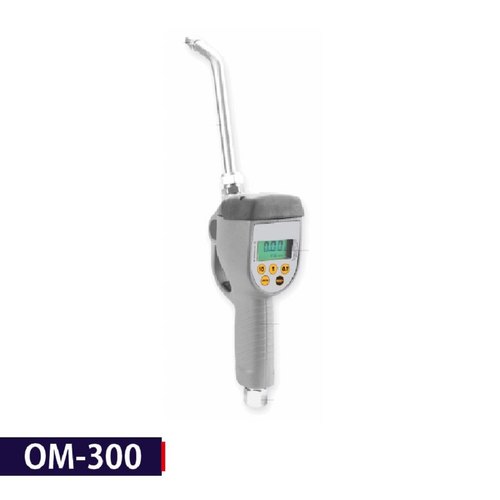

Electronic Pre-Set Oil Control Gun

Price on Request

2 products sold in last 8 hours

Selling fast! Over 12 people have in their cart

Heavy duty oil control gun with robust aluminium construction Electronic preset design; works on 4 x 1.5V AA batteries.

29 people are viewing this right now

Electronic Pre-Set Oil Control Gun

Heavy duty oil control gun with robust aluminium construction
Electronic preset design; works on 4 x 1.5V AA batteries
Dual Mode: Manual & Pre- Set (dispenses set quantity of media & stops)
Oval gear mechanism for optimum accuracy
Adjustable outlet nozzle can be positioned for in-line or 90 dispensing
Resettable totalizer for individual batch can be set in litres, quarts, pints & gallons
A second resettable totalizer for multiple dispensing operations can be set in litres, quarts, pints & gallons with max. pre-set volume of 99.9 units
Lifetime non-resettable totalizer can be set in litres
Built-in swivel at Inlet fitted with strainer
Supplied complete with steel extension with built-in non drip tip
WETTED COMPONENTS Aluminium, Steel, Stainless Steel, Brass, Polyurethane, Acetic Resin, Hi Nitrile Rubber
RECOMMENDED USE Oils with viscosity in the range of 10 to 5000 cst, Diesel
DO NOT USE WITH Petrol, Windshield Fluids etc.

SPECIFICATIONS

Flow Rate	1-30 LPM
Inlet	1/2″ BSP (F)
Accuracy	0.50%
Repeatability	0.20%
Max. Working Pressure	1,000 PSI (70 BAR)
Working Temperature Range	5C to 50C
Minimum Pre Set Qty.	0.10 Units
Maximum Pre Set Qty.	99.9 Units
Max. Resettable Batch Totalizer	999.9 Units
Max. Non Resettable Batch Totalizer	999999 Units
Viscosity Of Media Dispensed	10 to 5000 cst
Resolution / Least Count	0.005 litre
Water Resistance	IP55

ORDERING INFORMATION
