Brand: Groz Tools & Equipment

Electronic Oil Meter

Price on Request

11 products sold in last 9 hours
Selling fast! Over 14 people have in their cart
  • High pressure positive displacement meter suitable for in-line and end of line applications.
27 people are viewing this right now

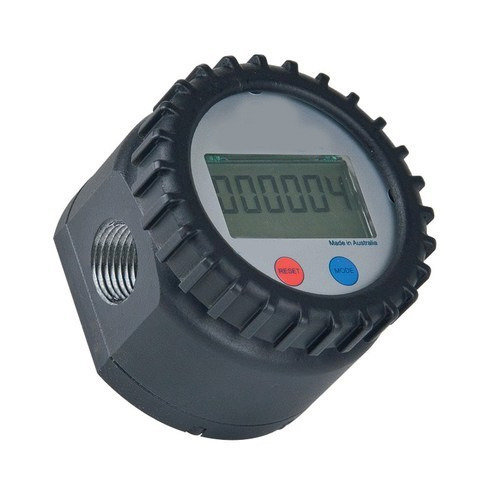

Electronic Oil Meter

  • High pressure positive displacement meter suitable for in-line and end of line applications
  • Oval gear mechanism for optimum accuracy
  • 6 Digit non-resettable totaliser
  • Meter inlet/outlet threaded 1/2″ BSP (F)
  • Electronic display using one 3V lithium Ion battery with life upto 5 years
  • Robust aluminium die cast construction with protective shroud on meter
  • Display can be rotated inevery 90 orientation for ease of installation
  • Measures in litres, US gallons, quarts, pints, ounces & decilitres
  • Easy user re-calibration

SPECIFICATIONS

Flow Rate 1-30 LPM
Accuracy 0.50%
Repeatability 0.20%
Max. Working Pressure 1,000 PSI (70 BAR)
Pressure Loss 10 PSI (0.7 BAR)
Working Temperature Range 14C to 55C
Max. Resettable Batch Totalizer 99999.9 units
Max. Non Resettable Batch Totalizer 999999.9 units
Least Count /Resolution 0.001 units
Display Output User selectable for 0.1, 0.01, 0.001 Units
Water Resistance IP65
  • FLOW RATE: 1-30 LPM
  • PRESSURE: UPTO 1,000 PSI (70 BAR)
  • TEMPERATURE: 14C TO 55C

ORDERING INFORMATION

CAT NR. THREADS BOX QTY.
OM/200/1-2/BSP 1/2″ BSP (F) 1
